Specification 78987
Performance and Specification Pump LE06 Series Triple Drive/Single Acting:
| Pump Model Code | Max.Out Press. | Actual Ratio | Dis. /Cycle | Max.Flow | Inlet Port | Outlet Port |
|---|---|---|---|---|---|---|
| LE06-3S-675 | 70000psi | 800:1 | 3.0ml | 0.41 l/min | 1/2"NPT | 1/4"SF |
| LE06-3S-900 | 75000psi | 100:1 | 2.3ml | 0.331/min | 1/2"NPT | 1/4"SF |
| LE06-3S-1350 | 100000psi | 1500:1 | 1.5ml | 0.20l/min | 1/2"NPT | 1/4"SF |
* SF means female super high pressure connection.

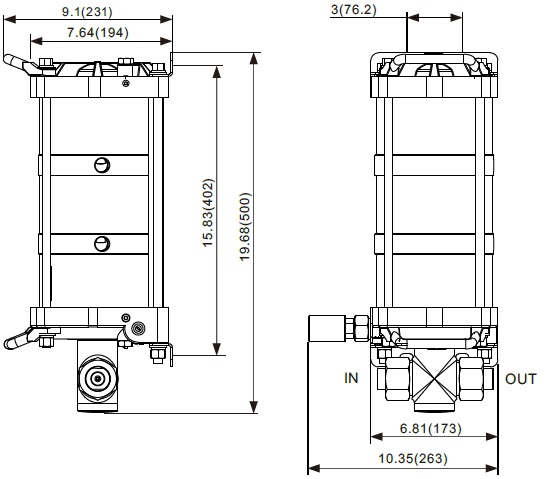

Dimensions (in.(mm):
* Air IN port is 3/4 female NPT for standard pumps.
Explain:
- All model code listed are standard.
- For angle pumps add “A” after the model codes.
- For Quick repair pumps add “-Q” after the model codes.
- For pumps with relief valve add “-R” after the model codes.
- For pumps with Viton seals add “-V” after the model codes.
- For pumps with Pressure switch valve add “-P” after the model codes.
- For cold area service add “-C” after the model codes.
- For liquid CO add “-C2” after the model codes.
- Other sizes, materials and types are available upon request.

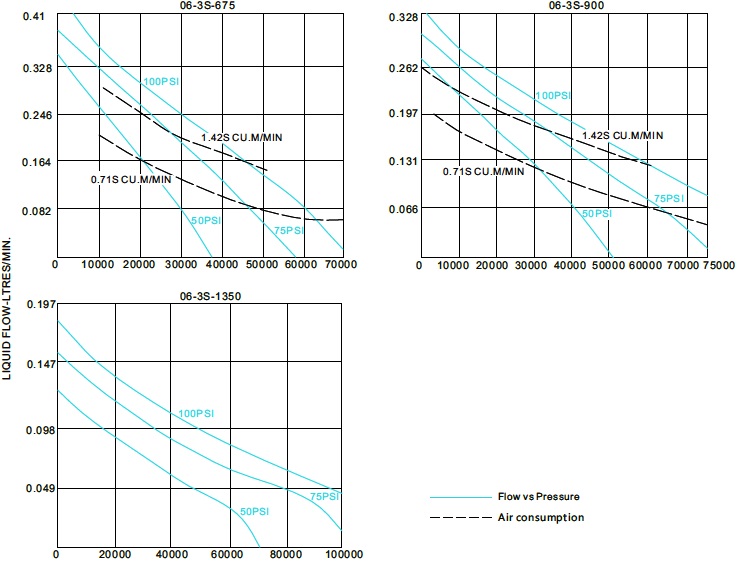

Perfomance Curves:
