Performance and Specification Pump LE06 Series Single Drive/Double Acting:
| Pump Model Code | Max.Out Press. | Actual Ratio | Dis. /Cycle | Max.Flow | Inlet Port | Outlet Port |
|---|---|---|---|---|---|---|
| LE06-1D-10 | 1600psi | 14:1 | 133ml | 29.9l/min | 1 "FNPT | 1/2"FNPT |
| LE06-1D-15 | 2400psi | 18:1 | 89ml | 19.9l/min | 1/2"FNPT | 1/2"FNPT |
| LE06-1D-25 | 4000psi | 30:1 | 53.6ml | 11.9l/min | 1/2"FNPT | 1/2"FNPT |
| LE06-1D-35 | 5700psi | 45:1 | 38ml | 8.6l/min | 1/2"FNPT | 1/2"FNPT |
| LE06-1D-60 | 9800psi | 72:1 | 22ml | 4.9l/min | 1/2"FNPT | 1/2"FNPT |
| LE06-1D-100 | 16500psi | 120:1 | 13.4ml | 3.0l/min | 1/2"FNPT | 1/2"FNPT |
| LE06-1D-150 | 20000psi | 180:1 | 9ml | 2.0l/min | 1/2"FNPT | 1/4 "HF |
* HF means female high pressure connection.

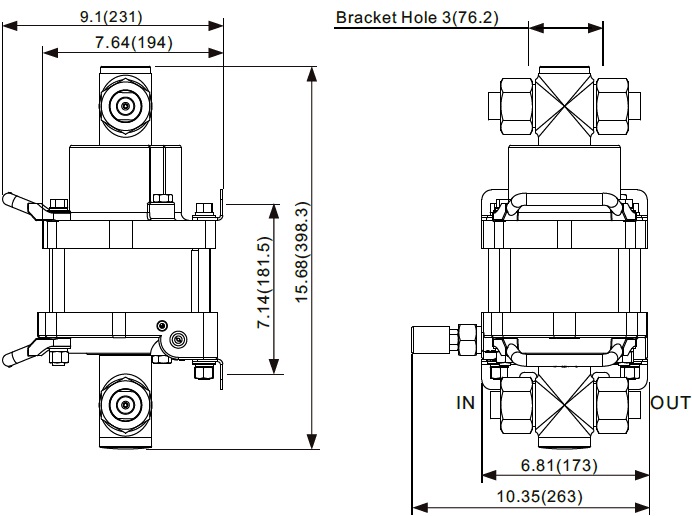

Dimensions (in.(mm):
* Air IN port is 3/4 female NPT for standard pumps.
Explain:
- All model code listed are standard.
- For angle pumps add “A” after the model codes.
- For Quick repair pumps add “-Q” after the model codes.
- For pumps with relief valve add “-R” after the model codes.
- For pumps with Viton seals add “-V” after the model codes.
- For pumps with Pressure switch valve add “-P” after the model codes.
- For cold area service add “-C” after the model codes.
- For liquid CO add “-C2” after the model codes.
- Other sizes, materials and types are available upon request.

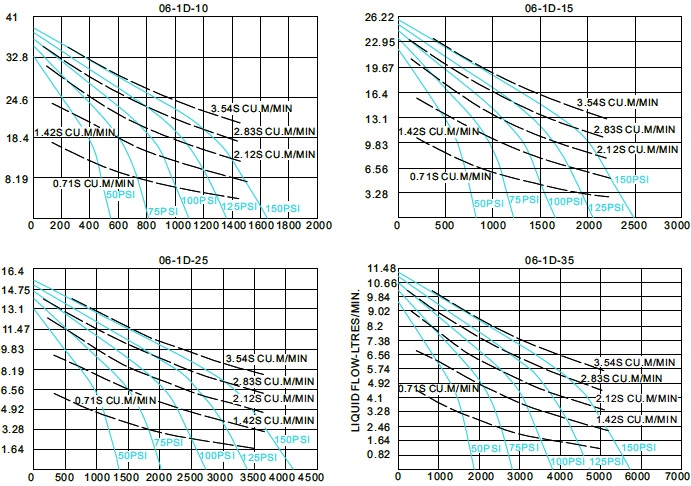

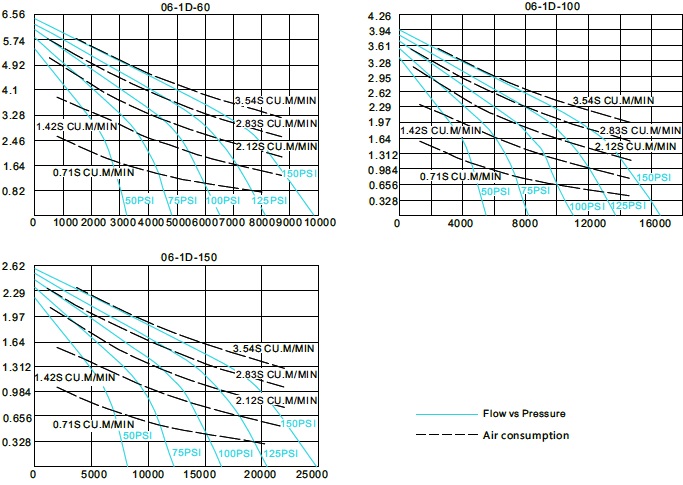

Perfomance Curves:
- LIQUID FLOW-LTRES/MIN.
- OUTLET PRESSURE(PSI).
