Specification 78987

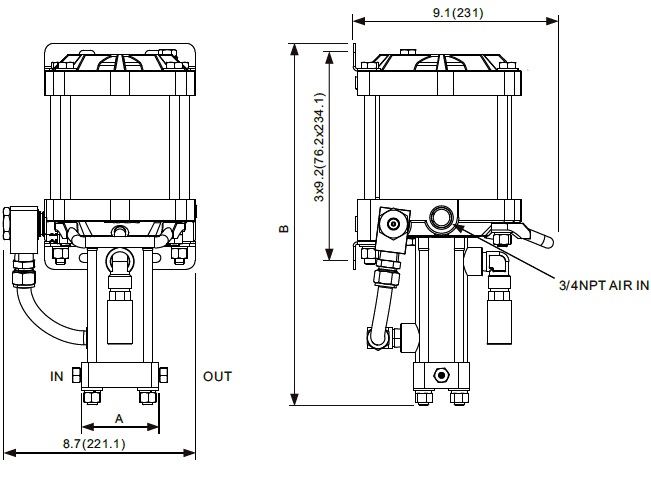

Dimensions (in.(mm):
- For LEB06-1S-7, A=4.97in.(126.4 mm).
- For other boosters, A=3.46in.(88 mm).
- For LEB06-1S-7, B=16.8in.(426.4 mm).
- For other boosters, B=16.4in.(416.4 mm).
Explain:
- All model code listed are standard.
- Oxygen gas service add “-O” after the model codes.
- Hydrogen gas service add “-H” after the model codes.
- Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
- With external pilot port on air drive section add“-X” after the model codes.
- With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
- Other sizes, materials and types are available upon request.
Performance and Specification Booster LEB06 Series Single Drive/Single Acting:
| Booster Model Code | Max.Rated Gas Suppl | Min.Rated Gas Supply | Max.Rated Gas Outlet (psig) - Inert Gas | Max.Rated Gas Outlet (psig) - Hydrogen | Max.Rated Gas Outlet (psig) - Oxygen | Actual ML Per Cycle | Outlet Stall Press. Formula | Compression Ratio Max. | Inlet & Outlet Gas Ports |
| LEB06-1S-7 | 1050psig | 25psig | 1050 | 1050 | 1050 | 216ML | 7 Pa | 20:1 | 3/8"FNPT |
| LEB06-1S-15 | 2250psig | 50psig | 2250 | 2250 | 2250 | 102ML | 15 Pa | 20:1 | 1/4"HF |
| LEB06-1S-30 | 4500psig | 100psig | 4500 | 4500 | 4500 | 51ML | 30 Pa | 25:1 | 1/4"HF |
| LEB06-1S-50 | 7500psig | 100psig | 7500 | 7500 | 5000 | 32ML | 50 Pa | 25:1 | 1/4"HF |
| LEB06-1S-75 | 11250psig | 250psig | 11250 | 11250 | 5000 | 20ML | 75 Pa | 25:1 | 1/4"HF |
* HF means female high pressure connection.

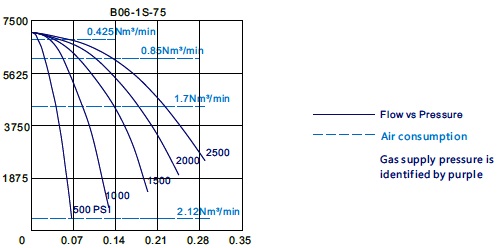

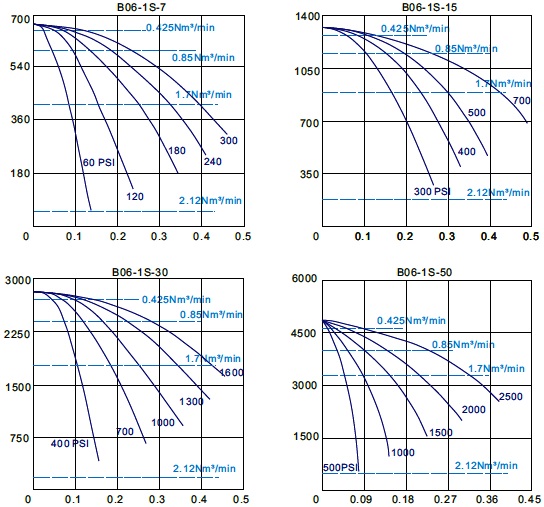

Performance Curves — air drive source of approximately 90 psig:
- GAS OUTLET PRESSURE - PSIG.
- GAS OUTLET FLOW - Nm³/min.
