Specification 78987

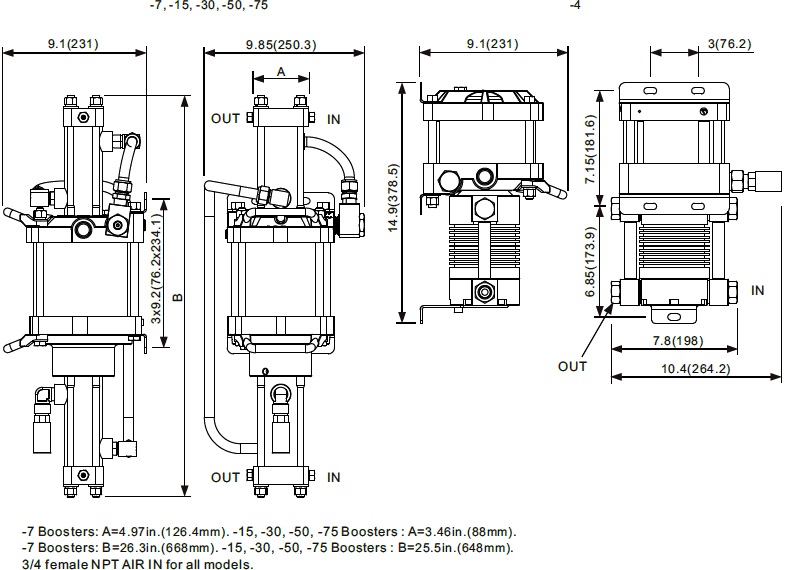

Dimensions (in.(mm):
Explain:
- All model code listed are standard.
- Oxygen gas service add “-O” after the model codes.
- Hydrogen gas service add “-H” after the model codes.
- Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
- With external pilot port on air drive section add“-X” after the model codes.
- With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
- Other sizes, materials and types are available upon request.
Performance and Specification Booster LEB06 Series Single Drive/Double Acting:
| Booster Model Code | Max.Rated Gas Supply | Min.Rated Gas Supply | Max.Rated Gas Outlet (psig) - Inert Gas | Max.Rated Gas Outlet (psig) - Hydrogen | Max.Rated Gas Outlet (psig) - Oxygen | Actual ML Per Cycle | Outlet Stall Press. Formula | Compression Ratio Max. | Inlet & Outlet Gas Ports |
| LEB06-1D-4 | 1250psig | ATM | 1250 | 1250 | 1250 | 316ML | 4 Pa+Ps | 10:1 | 3/8"FNPT |
| LEB06-1D-7 | 2500psig | 25psig | 2500 | 2500 | 2500 | 432ML | 7 Pa+Ps | 20:1 | 3/8"FNPT |
| LEB06-1D-15 | 5000psig | 50psig | 5000 | 5000 | 5000 | 203ML | 15 Pa+Ps | 20:1 | 1/4"HF |
| LEB06-1D-30 | 9000psig | 100psig | 9000 | 9000 | 5000 | 102ML | 30 Pa+Ps | 25:1 | 1/4"HF |
| LEB06-1D-50 | 15000psig | 100psig | 15000 | 15000 | 5000 | 64ML | 50 Pa+Ps | 25:1 | 1/4"HF |
| LEB06-1D-75 | 15000psig | 250psig | 15000 | 15000 | 5000 | 39ML | 75 Pa+Ps | 25:1 | 1/4"HF |
* HF means female high pressure connection.

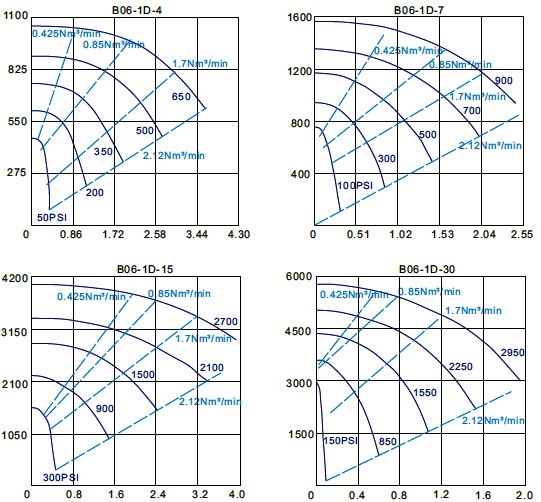

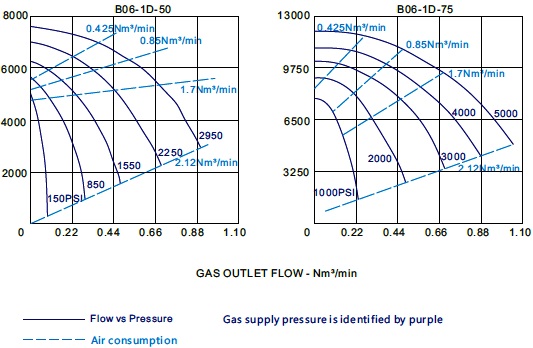

Performance Curves — air drive source of approximately 90 psig:
- GAS OUTLET PRESSURE - PSI.
- GAS OUTLET FLOW - Nm³/min.
