Specification 78987

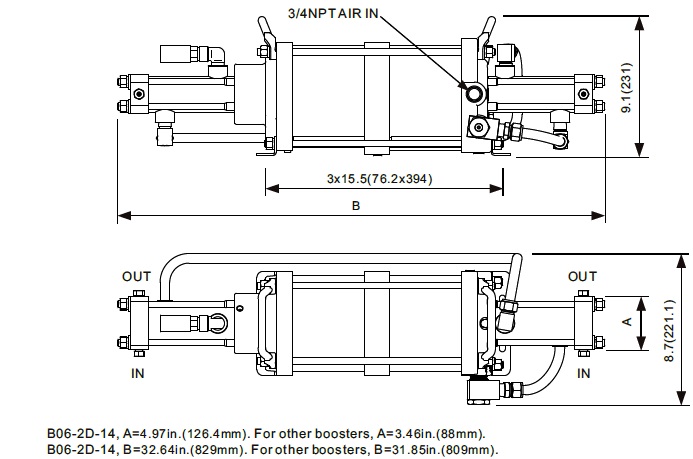

Dimensions (in.(mm):
Explain:
- All model code listed are standard.
- Oxygen gas service add “-O” after the model codes.
- Hydrogen gas service add “-H” after the model codes.
- Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
- With external pilot port on air drive section add“-X” after the model codes.
- With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
- Other sizes, materials and types are available upon request.
Performance and Specification Booster LEB06 Series Double Drive/Double Acting:
| Booster Model Code | Max.Rated Gas Supply | Min.Rated Gas Supply | Max.Rated Gas Outlet (psig) - Inert Gas | Max.Rated Gas Outlet (psig) - Hydrogen | Max.Rated Gas Outlet (psig) - Oxygen | Actual ML Per Cycle | Outlet Stall Press. Formula | Compression Ratio Max. | Inlet & Outlet Gas Ports |
| LEB06-2D-14 | 3500psig | 25psig | 5000 | 5000 | 5000 | 432ML | 14 Pa + Ps | 20:1 | 3/8"FNPT |
| LEB06-2D-30 | 5000psig | 50psig | 5000 | 5000 | 5000 | 203ML | 30 Pa+Ps | 20:1 | 1/4"HF |
| LEB06-2D-60 | 9000psig | 200psig | 9000 | 9000 | 5000 | 102ML | 60 Pa+Ps | 25:1 | 1/4"HF |
| LEB06-2D-100 | 15000psig | 100psig | 15000 | 15000 | 5000 | 64ML | 100 Pa+Ps | 25:1 | 1/4"HF |
| LEB06-2D-150 | 25000psig | 250psig | 25000 | 15000 | N/A | 39ML | 150 Pa+Ps | 25:1 | 1/4"HF |
* HF means female high pressure connection.

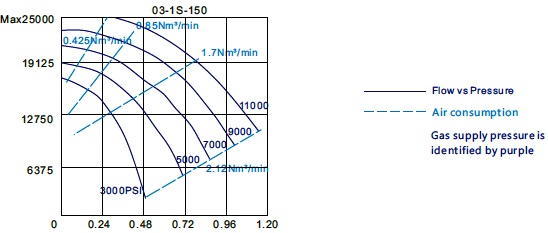

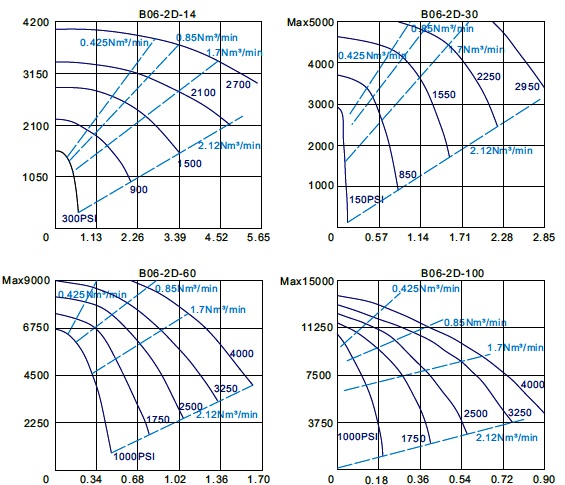

Performance Curves — air drive source of approximately 90 psig:
- GAS OUTLET PRESSURE - PSI.
- GAS OUTLET FLOW - Nm³/min.
